Circularity In The Collatz Sequence

Updated:   January 14, 2023
```

```
ABSTRACT

We consider the possibility that the Collatz sequence reaches the
starting seed value and forms a loop.  To algebraically define when
a sequence repeats we use:

2^Even = 3^Odd + DL / Seed    where:

Even is the number of even steps.
Odd is the number of odd steps.
DL is a sum that is derived from the sequence.

The point where the sequence comes nearest to reaching the seed is
when 3^Odd is close to 2^Even.  In binary close implies that 3^Odd
has many lead one bits.  The carry from adding DL / Seed
causes them to flip resulting in a power of two.  This constraint
eliminates nearly all candidate loop lengths except when the number
of Odd steps has many leading one bits in 3^Odd.

A large seed is needed to produce a run with enough Odd steps so
that 3^Odd has even a modest number of leading one bits.  However,
the width of the seed is also limited by the number of ones.  This
limit is so low that no seed can produce a run that is big enough
to form a loop.
```

#### 1.0 Introduction

The Collatz series cycles after a repeated value is reached. If a cycle existed a sequence that starts with any value in the cycle will always loop back to itself. Also, any branch of a sequence that reaches any value in the cycle will repeatedly loop back to that value.

It is sufficient to consider only sequences that start at the lowest candidate seed value in a potential cycle. For the Collatz series we start at the bottom of the loop so that once the series reaches a value lower than the seed we know it is acyclic. After that, by induction, we know it will eventually terminate at one.

To misappropriate the terms from astrophysics, the point where the sequence dips below the starting seed is the (event) horizon. A series that goes below the horizon collapses to the singularity, one.

```      Notation:  #3a09       Hex values have a leading pound sign.

X*Y         Multiplication

X^Y         Exponentiation

[ real ]    Truncated integer part of a real number

ln( x )     Natural log base e

log2( x )   Log base 2
```

#### 1.1 Expand the Sequence

The original Collatz sequence is:

```      N is Even:    N' = N / 2

N is Odd:     N' = 3 * N + 1
```

A variation is to rewrite it as a series of Odd steps. In this form Ei is the number of Even steps in term i. Looking at a result from an Odd step this is the number of trailing zeros. It is always one or more.

```      N0   = Seed

Ni * 3 + 1
Ni+1 = -----------
Ei
```

To expand this sequence it is useful to define a Sum, K, which gives the total number of even steps accorrding to the original series.

```      K0 = 0

Ki = Ki-1 + Ei
```

Then we expand the sequence to form an iterative sequence.

```      N0 = Seed                  Only odd seeds are allowed

N1 = Seed * 3 + 1 / 2^K1            K1 = E1

N2 = Seed * 3 + 1              Seed*9 + 3 + 2^K1
------------  * 3 + 1  =  -----------------
2^K1                         2^K2
----------------
2^E2

N3 = Seed*9 + 3 + 2^K1              Seed*27 + 9 + 3*2^K1 + 2^K2
----------------- * 3 + 1  =  ----------------------------
2^K2                              2^K3
-----------------
2^E3

i
Ni = Seed*3^i  +  ∑  3^(i-j) * 2^Kj-1
j=1
--------------------------------
2^Ki
```

To simplify the expansion let Di signify the sum. This is useful since Di encapsulates the non-algebraic portion of the sequence known as the hailstone effect.

```           Seed * 3^i + Di
Ni = ---------------
2^Ki

i
Di  =  ∑ 3^(i-j) * 2^Kj-1
j=1
```

Di can also be computed using a recursive sequence derived directly from the Collatz sequence. Using the recursive form is useful to validate that Di is properly calculated.

```        D0 = 0

Di+1 = Di * 3 + 2^Ki
```

This example combines all four sequences to show how they interrelate. The horizon line is the point where the series drops below the seed.

```         i       Ei       Ki       Ni           Di

0       0        0       139           0    Seed = 139
1       1        1       209           1
2       2        3       157           5
--------------------------------------------  Horizon
3       3        6        59          23
4       1        7        89         133
5       2        9        67         527
6       1       10       101        2093
7       4       14        19        7303
8       1       15        29       38293
9       3       18        11      147647
10       1       19        17      705085
11       2       21        13     2639543
12       3       24         5    10015781
13       4       28         1    46824559
```

#### 1.2 Cycle Spotting

Let L be the number of odd steps taken to reach the horizon. Should NL = Seed the sequence lands right on the horizon and forms a loop. Otherwise, the sequence dips below the horizon and eventually terminates. Going forward we'll refer to L odd steps of the Collatz sequence as a run.

```                         Seed*3^L + DL
NL = Seed  =  -------------
2^KL

Seed * 2^KL  =  Seed * 3^L + DL

2^KL  =  3^L + DL / Seed
```

In the last equation we see that Seed has to evenly divide DL. Also, when (DL / Seed) is less than 3^L then 2^KL is close to 3^L. Although close is a fuzzy term, it'll be refined in the next section. These constraints are used in Appendix C to find loops in the 3*n-1 sequence and Appendix D covers 3*n+C sequences.

```        Constraints:  2^KL  =  3^L + DL / Seed

Seed divides DL

3^L is close to a power of 2
```

In this section we look at why powers of 3 with many leading ones is related to loops in the sequence. First we devise a contrived example to illustrate what arithmetic for a cycle would look like.

```              Seed * 2^KL  =  Seed * 3^L + DL

Seed * (2^KL - 3^L)  =  DL

Seed  =  DL / (2^KL - 3^L)
```

When 3^L has many leading one bits then (2^KL - 3^L) gets smaller and the size of seed increases.

For a seed of 27 the actual value of D29 = #6_954f_e21e_3e81, but here we substitute the value that would be needed to form a loop.

```       Seed = 27

D29 = #2ab0_1de1_c17f          ~ Required value ~

2^Ki = 3^i + Di / Seed

Seed divides D29:    #2ab0_1de1_c17f % Seed = 0

D29 / Seed  =  #194_bebc_826d

3^29 is close to 2^46:            3^29  =  #3e6b_4143_7d93

2^46 - 3^29  =   #194_bebc_826d

2^K29 = 3^29 + D29 / Seed = 3^29 + #2ab0_1de1_c17f / 27

2^46 = 3^29 + #194_bebc_826d / #1d

The width of the numeric values are:

Seed  = #1b                  5 bits
3^29  = #3e6b41437d93       46 bits  with 5 lead one bits
D29 = #2ab01de1c17f       46 bits
D29 / Seed =  #194bebc826d       41 bits

#3e6b41437d93   3^29
+  #194bebc826d   D29 / Seed
-------------
#400000000000   2^46
```

The upper 5 bits of 3^29 are all ones. This is what happens when a power of 3 is just a little under a power of 2.

When D29 is divided by the Seed the result is 5 bits shorter than D29. Adding (D29 / Seed) to 3^29 has a carry that flips the upper 5 one bits of 3^29 to zeros so that the result is a power of two.

The number of leading ones on a power of 3 serves as a metric for how close it is to a power of 2. The number of leading ones is small even for large exponents. Since the exponent is the same as the run length, the small number of leading ones limits the width of candidate seeds. For such a small run length the sequence will go below the horizon and converge well before reaching the required length.

#### 1.4 Powers of Three

Since candidate runs have several leading binary one digits of a power of three, lets find them first. This example lists exponents resulting in 5 lead one bits.

```   Exponent - Powers of 3 with 5 leading ones

Interval - The Exponent minus the previous exponent

Exponent   Interval    Lead digits of 3^Exponent

29                    #3e6b41437d93
82        53          #3e8ca816be3ddb89e ...
135        53          #3eae20c9b77961715 ...
188        53          #3ecfab65f9d556fd1 ...
229        41          #7c30cdf4df1dc9ea0 ...
241        12          #3ef147f51affc7ea7 ...
282        41          #7c7342ef43a36a0a5 ...
335        53          #7cb5d_b79a5ff50d3 ...
388        53          #7cf897a70decc5280 ...
441        53          #7d3b778a8d56046c7 ...
494        53          #7d7E7b374059b58f3 ...
535        41          #f820a47e15c1033d4 ...
547        12          #7dc1a2c04d505eff5 ...
588        41          #f8a56baf0ed806d4f ...
641        53          #f92a79ed6922ff0a1 ...
694        53          #f9afcf5f2a23facf3 ...
747        53          #fa356c2a6bb5a258d ...
800        53          #fabb50755c161a57b ...
```

Notice that for a given number of one bits the exponents increase regularly, but with three different intervals. Also the largest interval, 53, is the sum or the other two intervals. This pattern occurs with powers of 3 with a fixed number of leading ones. The three intervals differ though depending on the number of leading ones.

Here we are only concerned with the lowest exponent; which is not distributed smoothly. The regularity of intervals for larger exponent just shows that run lengths are not completely chaotic.

This next list has the first power of 3 that have a number of leading ones. After a few weeks the computer spit out 42 and the mice have been dutifully informed. If a loop existed it would have to have a run length with many lead ones in 3^Length. This considerably narrows down candidate run lengths.

```Lead     Lowest Exponent for             Lead     Lowest Exponent for
Ones     3^Exponent with Ones            Ones     3^Exponent with Ones

1                     2                  21               762_148
2                     3                  22               381_074
3                    10                  23               190_537
4                     5                  24            32_343_822
5                    29                  25            21_562_548
6                    41                  26            10_781_274
7                   147                  27           118_212_940
8                   253                  28           343_857_546
9                   306                  29           171_928_773
10                 1_636                  30         1_987_866_895
11                 8_951                  31         1_192_720_137
12                12_276                  32           795_146_758
13                14_271                  33           397_573_379
14                31_202                  34        19_760_456_010
15                15_601                  35        13_173_637_340
16                47_468                  36         6_586_818_670
17               158_670                  37        72_057_431_991
18                79_335                  38       412_584_135_936
19             2_858_055                  39       275_056_090_624
20             1_524_296                  40       137_528_045_312
41     3_149_971_404_836
42     4_656_193_084_598
```

#### 2.0 Loop Bounds In Binary

For this analysis we are going to use the width of values in bits. Arithmetic is performed on positive integer numbers. Their width is given by the following function.

```width( integer ) = [log2( integer )] + 1
```

The width of a power of 3 can also be computed using logarithms.

```width( 3^L )  =  [L * ln(3) / ln(2)] + 1  =  [L * log2(3)] + 1
```

#### 2.1 Size of DL

The sequence D depends on the Ki values which are the number of even steps following each odd step. They cannot be determined algebraically resulting in the hailstone effect. Instead we derive bounds for the sequence after L steps.

```       L
DL  =  ∑  3^(L-j) * 2^Kj-1
j=1
```

As the terms progress the powers of 3 are decremented in each step while the powers of two increase. They each balance out so that all the terms are of the same magnitute. A balance is maintained because the powers of two are limited by the K sequence. If a Ki value is too big then the corresponding value in the Collatz series would dip below the horizon and never reach the full run length.

A maximum bound for DL can be contrived by setting Ki values so they produce a large value. This is done by setting them to their maximum value early in the run. Since the powers of 3 are biggest early in the run, these terms get even larger with higher Ki values.

As the series progresses the Ki values are the number of even steps and the index is the number of odd steps. To stay above the horizon then 3^j must be greater than 2^Kj. Here is an algorithm that produces maximum values of Ki to determine a maximum bound for DL:

```E = 0
K = 0
Dmax = 3^(L-1)

DO j = 2  to  L
E  = [log2( 3^(J-1) )] - K
K += E

Dmax += 3^(L-j) * 2^K
-
```

The first term of the series, 3^(L-1), is always the largest. In each step the power of 3 is reduced by 3^j. Since the value of 2^Kj has to be under 3^j we know that:

```3^(L-j) * 3^j  >  3^(L-j) * 2^Kj-1

3^(L-1)  >  3^(L-j) * 2^Kj-1

L
DL  =  ∑  3^(L-j) * 2^Kj-1  <  L * 3^(L-1)
j=1
```

The terms of the sum are close in magnitude so L * 3^(L-1) turns out to be a close upper bound on DL.

Using the same approach, a lower bound for DL can be made. In this case all values of Ej are one and Kj = j.

```K = 0
Dmin = 3^(L-1)

DO j = 2  to  L
K += 1

Dmin += 3^(L-j) * 2^K
-
```

The lower bound produced by this algorithm can be calculated exactly as the sum of two parts. The first term, 3^(L-1), is the initial value. The remaining terms are calculated as the closed form of the geometric series.

```Dmin  =  3^(L-1)                            Initial term

+ 3 * 2^(L-1) * (1.5^(L-2) - 1)       Geometric term
```

The sum of the remaining terms are computed in reverse order. The last term is 3 * 2^(L-1) and each prior term is 1.5 times as big.

```  T  =  2^(L-1)                              Last term

Sum  =  T*1.5 + T*1.5^2 + T*1.5^3 + ... + T*1.5^(L-1)

Sum  =  T * {1 + 1.5 + 1.5^2 + 1.5^3 + ... + T*1.5^(L-1)}
```

The sum of the geometric series is then:

```L-1           1 - 1.5^(L-1)   1 - 1.5^(L-1)
∑  1.5^i  =  ------------- = -------------  =  1.5^(L-1) * 2
i=0              1 - 1.5          -.5

Sum  =  T * 1.5^(L-1) * 2

=  2^(L-1) * 1.5^(L-1) * 2

=  { 3^(L-1) - 2^(L-1) } * 2

=  2 * 3^(L-1) - 2^L

DL  >=  3^(L-1) + 2 * 3^(L-1) - 2^L

DL  >=  3^L - 2^L
```

Together the bounds are:

```3^L - 2^L  <=  DL  <  L * 3^(L-1)
```

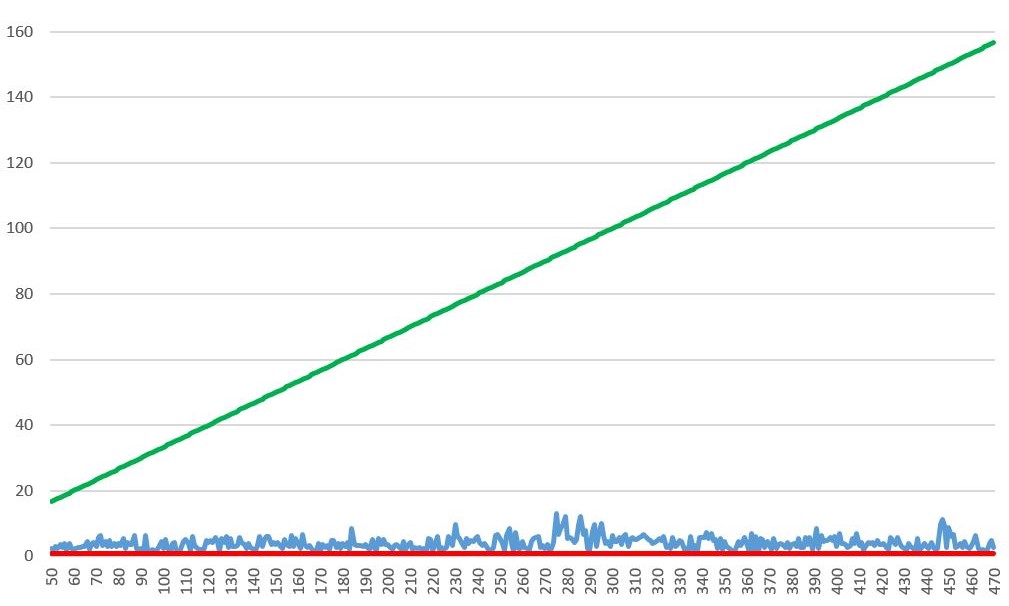

These charts list bounds after running many seed that produced runs of a given length. Programmatically the bounds were validated for seeds up to 6_000_000_000_000.

```               L * 3^(L-1)                    Observed
L           Maximum Bound                    Maximum DL

10                       #300de                       #169c9
15                     #446bc17                     #33e4817
20                   #569860d1c                   #4069e6dd5
25                 #66bf4ce0df9                 #4997c31d84f
30               #75091a5e8b73a               #4b72433ff27fd
35             #819b94b3b36e8bb             #50c4ef4133b9527
40          #8_c99eb99ccefec1b8          #5_33af21897da9a539
41         #1b_0594e128961c2d49          #f_b49c4be803b5a2cf
45        #962_4ddf75d38b4c1ddd        #59d_d56ec09eed78837f
50      #9e5ae_21ae451cea477f16      #5edd6_78b6ac73a7ff33a1
55    #a5584b7_c4765d176ba6fedf    #563376f_74f8d09154e81f4b
60  #ab376e2a8_2a911fe379a731d4  #570b66f89_7c32433470545e89

3^L - 2^L                     Observed
L           Minimum Bound                   Minimum DL

10                        #e2a9                       #18901
15                      #da726b                     #1f603b7
20                    #cfc41b91                   #1f29d7af1
25                  #c544562aa3                 #28e69d42f4f
29                #3e6b21437d93                #b088507802db
30                #bb4183ca78b9               #2b9d16ab71fb1
35              #b1bf64d930979b             #1a4445c586dabe3
40            #a8b8b352291fe821            #e28c7dbbac598c21
41          #1_fa2a1af67b5fb863          #1_ffdee34b9a06b863
45         #a0_275309fd09495753         #a0_baeb3fceb4355753
50       #9805_53ecdb2fd09de3c9       #982B_32dba1a9a4dde3c9
60   #88f924ee_beeda7fe92e1f5b1   #8a3b121e_a02395040bfef5b1
```

We can plug the maximum D value into the constraint to get the maximum Seed value for a given loop length.

```        Seed * 2^KL  =  Seed * 3^L + DL

Seed * (2^KL - 3^L)  =  DL

Seed  =  DL / (2^KL - 3^L)

Seed  <  DmaxL / (2^KL - 3^L)

L * 3^(L-1)
Seed  <  -----------
2^KL - 3^L
```

The Seed is maximized when: KL = [log2( 3^L )] + 1 = width( 3^L )

```                       Maximum      L * 3^(L-1)
Candidate  <  -----------
L         KL        Seed        2^KL - 3^L

5         8              31.15
10        16              30.34
20        32              28.76
29        46             381.64
30        48              27.24
40        64              25.78
41        65           1_185.43
50        80              24.37
100       159              79.76
147       233           6_700.17
150       238             257.93
200       317          12_790.90
250       397             120.29
253       401          27_071.44
300       476             235.14
306       485          99_729.97
350       555             583.11
400       634          12_757.65
450       714             213.80
500       793             385.17
1_636     2_593         583_014.68
8_951    14_187       6_559_828.85
12_276    19_457      17_302_831.00
14_271    22_619      45_086_468.18
15_601    24_727     285_814_986.23
31_202    49_454     285_812_386.08
47_468    75_235   1_447_674_321.78
79_335   125_743   7_216_089_270.36
158_670   251_486   7_216_076_047.89

```

#### 2.2 Maximum Aligned Seed

Using the constraints on the D sequence we can now derive an upper bound on the Seed. For a loop we need NL = Seed. Then the loop constraint can be applied to derive an upper bound for the seed.

```                Seed*3^L + DL
NL  =  Seed  =  -------------
2^KL

Seed * 2^KL  =  Seed * 3^L + DL

2^KL  =  3^L + DL / Seed

Seed  =  DL / (2^KL - 3^L)
```

Replacing DL with its bounds in turn bounds the Seed.

```Dmin / (2^KL - 3^L)  <  Seed  <  Dmax / (2^KL - 3^L)

3^L - 2^L                 L * 3^(L-1)
------------  <  Seed  <  ------------
(2^KL - 3^L)              (2^KL - 3^L)

where:  KL = [log2( 3^L )] + 1
```

In order to align (2^KL - 3^L) below the leading ones in 3^L the denominator needs to be reduced by 2^Ones.

For example 3^29 has 5 leading ones and the initial maximum Seed is 301.

```            29 * 3^(29-1)     663426981193869
Seedmax  <  -------------  =  ----------------  =  301
2^(46 - 5)        2199023255552

<  (29 * 2^5) / 3  =  309
```

Due to arithmetic boundary conditions involving additive carries, in practice this bound needs to be doubled. For this example the final bound would be 618 instead of 309.

```Seedmax  <  [(29 * 2^6) / 3]  =  618
```

The Seed is limited to the upper bound in order to meet the constraint on forming a loop. This severely limits eligible Seeds and effectivly makes a loop impossible.

For large lengths the calculation of 3^L can be difficult. To simplify the arithmentic the 2^KL term is replaced by 3^L in the inequality. Since 3^L is slightly under 2^K the upper bound of the seed will only slightly increase.

```              L * 3^(L-1)         L * 3^(L-1)     L * 2^Ones
Seedmax  <  --------------  <   --------------  =  ---------
2^(KL) / 2^Ones      3^(L) / 2^Ones         3

L * 3^(L-1)           L * 1.5^(L-1)        L * 2^Ones
Seedmax  <  --------------  <  ---------------------  =  ----------
2^(KL - Ones)      2^(KL - Ones - L + 1)         3

KL = [log2( 3^L ) + 1]

log2( Seedmax ) + 1

= log2( L * 3^(L-1) ) - [log2( 2^(KL - Ones) )] + 1

= {log2( L ) + (L-1)*log2(3)} - {KL - Ones} + 1

= log2( L ) + (L-1)*log2(3) - {integer[log2( 3^L )] + 1} + Ones + 1

= log2( L ) + (L-1)*log2(3) - integer[L*log2(3)] + Ones
```

Since the seed is doubled to handle carries the maximum simplifies to:

```Seedmax < {L * 2^(Ones + 1)} / 3
```

#### 2.3 Seed Limit Using Binary Arithmetic

The Seed bound relies on the mechanics of binary arithmetic. Rather than using an algebraic derivation we'll go through it again in binary. It should also make things more concrete and precise. First lay out the bit patterns in binary numbers.

```2^KL  =  3^L + DL / Seed     Computation to be performed.

Binary Value            Description

[ones | more bits]     3^L with lead ones

+   [  D / seed  ]     DL / Seed
------------------
[1 | zeros | rest ]     rest needs to be zero for a loop
```

Since DL is difficult to compute we can substitute it with DmaxL.

```       Binary Value            Description

[ones | more bits]     3^L with lead ones

+   [  D / 2^J  ]     Dmax / 2^{ width( 3^L) - Ones }
-------------------
[1 | zeros | rest ]     rest needs to be zero for a loop

[       Dmax        ]     Maximum value of DL
```

This next set of diagrams show what happens when the alignment needs adjusting.

```                      C = 0          The addition does not carry into the ones.

[ 11111 0 xxxxxxx ]    3^L

[ 1 0 yyyyyyy ]    Dmax / Seedmax

^____ Align to here works only in this case

C = 1          The addition carries into the ones.

[ 11111 0 xxxxxxx ]    3^L

[ 1 yyyyyyy ]    Dmax / Seedmax is bigger

^____ Align to here gives the biggest Seedmax value
```

This example shows how sometimes Seedmax needs to be doubled to account for the carry. The run length is 41; for which 3^41 has 6 leading ones.

```           3^41  =  #1_fa2a_1cf6_7b5f_b863
Dmax  =  #1b_0594_e128_961c_2d49       41 * 3^(41-1)
Seedmax  =  1749                       41 * 2^(6+1) / 3

Dmax = 110110000010110010100111000010010100010010110000111000010110101001001  69 bits

3^41 =     11111101000101010000111001111011001111011010111111011100001100011  65 bits

Dmax
---- =           11000000001001111011000011101011110010110100011111100100110  59 bits
1152

Sum =    100000000000101011010110100111110111011001101110011111011110001001  66 bits
```

In order to loop the entire result would have to be a power of two. While true, it is sufficient to show that the limit on the Seed is so small that it cannot lead to a long enough run. The maximum Seed of 1749 is still too small to produce a run length of 41. The smallest Seed that can do that is 4591.

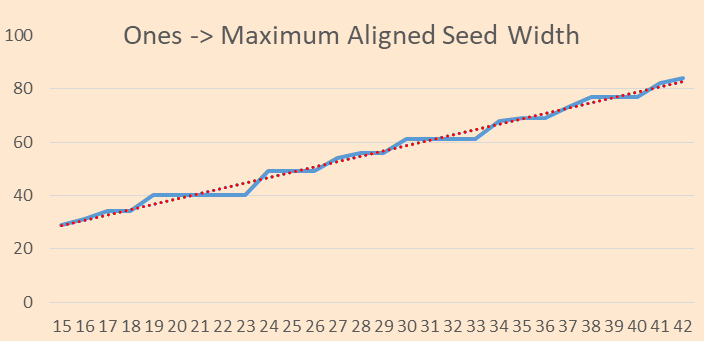

This next chart relates the lowest power of 3 with a number of leading ones to the largest seed allowed that meets the alignment constraint. Trivial values are excluded. The width of the maximum seed is also listed. It fits linearly to: 2.0003 * Ones + 26.746

Computations by Barina have shown that seeds under 68 bits terminate at one. This covers seeds for lengths under 6_586_818_670. This implies at this point there are no loops with a run length that is shorter.

```                 Lowest               Maximum Seed To        Maximum
Leading          3^Power =            Align with Ones        Seed
Ones           Run Length         Length*2^(Ones+1)/3      Width

5                 29                              618    10
6                 41                             1749    11
7                147                            12544    14
8                253                            43178    16
9                306                          1_04448    17
10              1_636                         11_16842    21
11              8_951                        122_21098    24
12             12_276                        335_21664    25
13             14_271                        779_38688    27
14             31_202                       3408_09045    29
15             15_601                       3408_09045    29
16             47_468                      20739_08565    31
17            158_670                    1_38647_96160    34
18             79_335                    1_38647_96160    34
19          2_858_055                   99_89626_26560    40
20          1_524_296                  106_55601_34997    40
21            762_148                  106_55601_34997    40
22            381_074                  106_55601_34997    40
23            190_537                  106_55601_34997    40
24         32_343_822                36175_95253_06368    49
25         21_562_548                48234_60337_41824    49
26         10_781_274                48234_60337_41824    49
27        118_212_940             10_57751_48180_00213    54
28        343_857_546             61_53570_47730_33984    56
29        171_928_773             61_53570_47730_33984    56
30      1_987_866_895           1422_97055_04710_10986    61
31      1_192_720_137           1707_56466_05652_13184    61
32        795_146_758           2276_75288_07536_17578    61
33        397_573_379           2276_75288_07536_17578    61
34     19_760_456_010        2_26321_36617_86577_30560    68
35     13_173_637_340        3_01761_82157_15436_40746    69
36      6_586_818_670        3_01761_82157_15436_40746    69
37     72_057_431_991       66_02332_02848_19022_15168    73
38    412_584_135_936      756_06842_48292_43028_93056    77
39    275_056_090_624     1008_09123_31056_57371_90741    77
40    137_528_045_312     1008_09123_31056_57371_90741    77
41  3_149_971_404_836    46179_06915_70544_51177_66314    82
42  4_656_193_084_598  1_36521_02500_49520_38789_17461    84
``` #### 2.4 Run Length

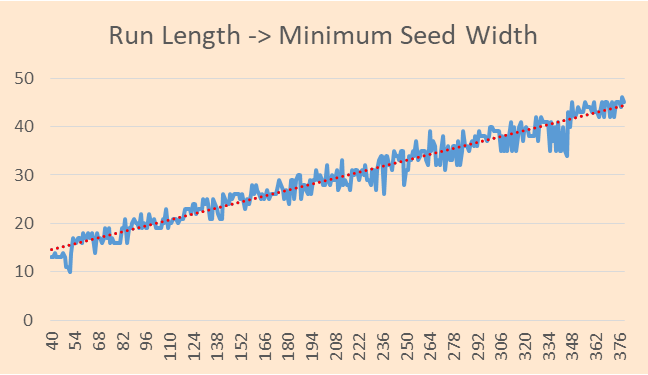

This table lists run lengths and the corresponding seeds. We are primarilly interested in the width of the smallest seed. Despite their chaotic nature, if their widths are plotted we get a linear trend line with little variance:

```    Average Minimum Required Seed Width:   0.0878 * Length + 14.447

Run         Minimum            Minimum
Required           Required
Length         Seed            Seed Width

40               6887           13
41               4591           13
42              13439           14
43               6383           13
44               4255           13
45               7963           13
46               6383           13
47              12399           14
48               7279           13
49               1583           11

:                 :              :

370   1220_47117_99967           44
371    281_35382_12167           42
372   2383_89422_84287           45
373    250_09228_55259           42
374   2872_96231_36495           45
375   2268_60535_77471           45
376   2553_74427_87995           45
377   1702_49618_58663           44
378   4299_29337_89863           46
379   3075_01027_27359           45
``` The maximum allowed seed is far smaller than the required seed. This means that a loop cannot be formed. The values also diverge. The maximum possible seed width increases linearly and the larger required seed width increases exponentially. As the number of leading ones increases the divergence increases exponentially so there is no hope of finding an aberant seed even further out to form a loop.

Here are the combined results of the previous computations. Note that only the first 5 required seed widths can be easilly computed. The remaining values are projected from the trend line for run lengths.

```Seedmax width is linear by Ones        2.0003 * Ones + 26.746

Seedmin width is linear by Length      0.0878 * Length + 14.447

Seedmin width is exponential by Ones

Lowest         Maximum           Minimum
3^Power =      Allowed           Required
Ones         Run Length     Seed Width        Seed Width

5                 29        10                   12     Actual
6                 41        11                   13     Required
7                147        14                   25     Widths
8                253        16                   33
9                306        17                   35
10              1_636        21                  158     Projected
11              8_951        24                  800     Required
12             12_276        25                1_092     Widths
13             14_271        27                1_267
14             31_202        29                2_754
15             15_601        29                1_384
16             47_468        31                4_182
17            158_670        34               13_946
18             79_335        34                6_980
19          2_858_055        40              250_952
20          1_524_296        40              133_848
21            762_148        40               66_931
22            381_074        40               33_473
23            190_537        40               16_744
24         32_343_822        49            2_839_802
25         21_562_548        49            1_893_206
26         10_781_274        49              946_610
27        118_212_940        54           10_379_111
28        343_857_546        56           30_190_707
29        171_928_773        56           15_095_361
30      1_987_866_895        61          174_534_728
31      1_192_720_137        61          104_720_842
32        795_146_758        61           69_813_900
33        397_573_379        61           34_906_957
34     19_760_456_010        68        1_734_968_052
35     13_173_637_340        69        1_156_645_373
36      6_586_818_670        69          578_322_694
37     72_057_431_991        73        6_326_642_543
38    412_584_135_936        77       36_224_887_150
39    275_056_090_624        77       24_149_924_771
40    137_528_045_312        77       12_074_962_393
41  3_149_971_404_836        82      276_567_489_359
42  4_656_193_084_598        84      408_813_752_842
```

#### 3.0 Conclusion

Bounds were derived that are useful for understanding loops in the Collatz conjecture.

```2^KL  =  3^L + DL / Seed       Defines a loop.
DL % Seed = 0                  From the definition.
3^L - 2^L  <=   DL  <  L * 3^(L-1)
Lower bound derived by setting KL = 1.

Upper bound derived by setting KL to the maximum value such that NL > Seed

Bounds KL values; encapsulating the hailstone effect.

An upper bound for the maximum allowed seed is: Length * 2^(Ones+1) / 3
Determined by aligning DL / Seed with Ones in 3^L.
```

These constraints are consistant with observable behavior. As such they help explain what we are seeing. That should make them easy to validate or to find a counter example if mistaken.

```Loops are confined only to small values.
Runs get closest to the horizon when 3^L is near 2^K.
For larger lengths runs miss the horizon by larger values.
Lead Ones in 3^L measures how close 3^L is to a power of 2.
The constraints generalizes to 3*n-1 and 3*n+C.
```

 Barina, David (2020). "Convergence verification of the Collatz problem". The Journal of Supercomputing. 77 (3): 2681-2688. doi:10.1007/s11227-020-03368-x. S2CID 220294340.

#### Appendix A: Short Run Lengths

The majority of runs are trivialy short. The length of a short run is easily determinted by the low order bits of the Seed. When the low bits for different seeds match, the run length will be the same regardless of the upper bits. However, in non-trivial runs the low order bits do not determine the run length.

Looking at the low 4 bits of a seed we can tell the the length of trivial runs, but not for 7, #B, or #F. The short lengths are either 1 or 2.

```       Low bits:   1  3  5  7  9  B  D  F

Length:   1  2  1  x  1  x  1  x
```

By constructing an array with entries of the non-trivial low bits you can generate seeds with longer runs. In the example above 5 out of 8 runs are trivial. Note that if the seed is even it is immediately divided by 2 and goes below the seed. Consequnetly even seeds can be discarded out of hand.

Here is the pyramid with low order bits (in hexadecimal) for non-trivial runs ranging from 1 to 8 bits. Each branch to the left adds a one bit to the front of the value. Right branches add a zero.

```                                                           1
|
____________ 3 ____________
/                           \
___________ 7 ___________                 3
/                         \                |
_________ f _________                 7               b
/                     \                |               |
___ 1f ___                _ f _           _ 7 _            1b
/          \              /     \         /     \         /    \
3f           1f            2f      f       27      7       3b     1b
/    \       /    \        /    \    |     /    \    |      /  \     |
7f      3f    5f    1f      6f    2f  4f    67    27  47    7b    5b  1b
/  \    /  \    |   /  \    /  \    |   |   /  \    |   |   /  \    |   |
ff  7f  bf  3f  df  9f  1f  ef  6f  2f  cf  e7  67  a7  47  fb  9b  5b  1b
```

To produce a series of candidate seeds you can combine low seed bits with upper bits of your choosing. The low bits would be in the set of values for non-trivial runs.

An array of 20 bit low order values for long runs has 27328 elements. Using it to create Seeds eliminates 94.8% of values which are all trivial. This was used to speed up searches in this paper. To generate seeds without trivial runs use nested loops as below using an array of low bit values named Lower20.

```      DO Upper = 0 to Limit:              DO over seeds (may start and end anywhere),
DO @Lower in Lower20:               DO over an array of low bits,
Seed = (Upper * 2^20) + Lower;      Construct the seed.

< Process the seed here as you wish. >
-  -
```

To visualize navigating the tree imagine driving through it from the top down. At each trivial branch there is a stop light and only appears some of the time on the left branches. The bits of the seed value from low to high guide you through the tree. Turn right on a one and turn left on a zero. choose the right seed and you'll go through all greens.

After each branch there are fewer green lights and a higher percentage of red lights. Since the seed is finite you are going to run out of bits to guide you. Then you are out of control and there are more and more red lights. To avoid them you need to know where they are, but you don't have that information. Instead each turn is determined by bumps in the road. Eventually you are going to reach a red light.

#### Appendix B: Finding Near Misses

After completing many runs we find that certain Seed values come closest to reaching themselves. The first thing that stands out is that as Seeds get larger the size of any near misses gets larger. That is, the amount by which runs miss the horizon increases.

To compensate for ever increasing misses, instead of looking at absolute values we divide the Seed by the miss. To find misses that are relatively close we take the ratio of the seed to the miss just below the horizon. It turns out that the ratio is useful because it characterizes the way misses behave.

```       Ratio = Seed / (Seed - NL)
```

Nearly all misses are relatively large and the ratio is small (< 10). On some runs though a few ratios are noticably larger. This happens when any value of 3^L is near a power of 2. First lets look at ratios for runs with 29 steps.

```         Seed     NL < Seed     Miss    Seed / (Seed - NL)

3431        3349         82        41.84146
4575        4465        110        41.59090
17919       17479        440        40.72500
20639       20131        508        40.62795
```

As the seeds get larger we still get some 40.+ ratios, but in this case the first ratio is highest. Next lets list the highest ratios found for various run lengths. Ratios for all other lengths in this region were much smaller.

```       L = Length     Seed      NL < Seed       Miss     Seed / (Seed - NL)

41        4591           4541          50        91.82000
94      432923         428885        4038       107.21223
147    50726683       50358403      368280       137.73944
200   495828479      493257605     2570874       192.86378
253  6250517663     6231106441    19411222       322.00537

306   1152923546776074687  =  Seed               978.74477
- 1151745585392149697  =  NL < Seed
-------------------
1177961383924990  =  Miss
```

Note that in all these cases three raised to the power of the Length has several leading one bits.

```          Length:   41     94     147     200      253     306

in 3^Length:    6      6      7       7        8       9
```

#### Appendix C: Cycles In The 3*n-1 Sequence

To see how the loop constraints can be met in a loop we look to the 3*n-1 variation orf the Collatz series. In addition to terminating at one this version has two small circularities.

```      N is Even:    N' = N / 2

N is Odd:     N' = (3 * N - 1) / 2

Seed            Values

5          14, 7, 20, 10, 5, ...

17          50,  25, 74,  37, 110, 55, 164, 82, 41, 122,
61, 182, 91, 272, 136, 68,  34, 17, ...
```

Next we plug in the values for these cycles into the revised series. Note that in this case the addition in the sequence is flipped to subtraction. This cuases the sign in the D series to flip.

```         i       Ei       Ki       Ni          Di       Seed = 5

0       0        0        5            0
1       1        1        7           -1
2       3        4        5           -5

Seed divides D:   D2  =  -5 = 5 * -1

Close powers:  2^3  =  3^2 + D2 / Seed

8  =  9 - 1

i       Ei       Ki      Ni           Di      Seed = 17

0       0        0       17            0
1       1        1       25           -1
2       1        2       37           -5
3       1        3       55          -19
4       2        5       41          -65
5       1        6       61         -227
6       1        7       91         -745
7       4       11       17        -2363

Seed divides D:    D7  =  -2363 = 17 * -139

Close powers:  2^11  =  3^7 + D7 / Seed

2048  =  2187 - 139
```

#### Appendix D: Loops in 3n+C

There are also small loops in varient sequences where odds transition to 3n+C; where C is a positive odd constant and not a multiple of 3. In this case the loop constraints are revised as follows.

```         Seed * C * 2^KL  =  Seed * 3^L + C * DL

2^KL  =  3^L + C * DL / Seed
```

```3*N+19:  Seed = 5  C = 19   Loop = {5, 17, 35, 31, 7}

N   K   D

5   0   0
17   1   1
35   2   5
31   4   19         5 * 2^11  =  10240  =  5 * 3^5 + 475
7   8   65
5  11  475             2^11  =  3^5 + 19 * 475 / 5 = 2048
```

Here are some loops for C under 100:

```3*N+C   2^K   = 3^L + C*DL / Seed                   Loop values

3*N+ 5: 2^27  = 3^17+5*189900931/187    187 283 427 643 967 1453 1091 1639 2461 1847 2773 2081 781 587 883 1327 1993
3*N+19: 2^11  = 3^5 +19*475/5             5 17 35 31 7
3*N+23: 2^5   = 3^2 +23*7/7               7 11
3*N+25: 2^27  = 3^17+25*189900931/935   935 1415 2135 3215 4835 7265 5455 8195 12305 9235 13865 10405 3905 2935 4415 6635 9965
3*N+25: 2^27  = 3^17+25*352383011/1735 1735 2615 3935 5915 8885 3335 5015 7535 11315 16985 12745 9565 1795 2705 2035 3065 2305
3*N+29: 2^17  = 3^9 +29*42251/11         11 31 61 53 47 85 71 121 49
3*N+29: 2^65  = 3^41+29*55258418497115015011/3811  3811 5731 8611 12931 19411 29131 43711 65581 49193 18451 27691 41551 62341 46763 70159 105253 78947 118435 177667 266515 399787 599695 899557 674675 1012027 1518055 2277097 853915 1280887 1921345 180127 270205 202661 152003 228019 342043 513079 769633 36077 27065 10153
3*N+35: 2^8   = 3^4 +35*85/17            17 43 41 79
3*N+47: 2^7   = 3^4 +47*85/85            85 151 125 211
3*N+49: 2^38  = 3^22+49*124233085375/25  25 31 71 131 221 89 79 143 239 383 599 923 1409 1069 407 635 977 745 571 881 673 517
3*N+53: 2^29  = 3^17+53*792382399/103   103 181 149 125 107 187 307 487 757 581 449 175 289 115 199 325 257
3*N+55: 2^5   = 3^3 +55*19/209          209 341 539
3*N+59: 2^10  = 3^6 +59*665/133         133 229 373 589 913 1399
3*N+65: 2^24  = 3^12+65*4748765/19       19 61 31 79 151 259 421 83 157 67 133 29
3*N+67: 2^30  = 3^16+67*261519653/17     17 59 61 125 221 365 581 905 1391 265 431 85 161 275 223 23
3*N+71: 2^10  = 3^5 +71*341/31           31 41 97 181 307
3*N+79: 2^23  = 3^14+79*12094865/265    265 437 695 541 851 329 533 839 649 1013 1559 1189 1823 1387
3*N+83: 2^12  = 3^7 +83*2507/109        109 205 349 565 889 1375 263
3*N+85: 2^100 = 3^56+85*104351656096075462196663857141/7   7 53 61 67 143 257 107 203 347 563 887 1373 1051 1619 2471 3749 2833 1073 413 331 539 851 1319 2021 1537 587 923 1427 2183 3317 2509 1903 2897 1097 211 359 581 457 91 179 311 509 403 647 1013 781 607 953 23 77 79 161 71 149 133 121
3*N+89: 2^17  = 3^8 +89*23783/17         17 35 97 95 187 325 133 61
3*N+91: 2^12  = 3^6 +91*2183/59          59 67 73 155 139 127
```

Here are two small loops with a lengths of 336 and 366:

```::::::: 3*N+3365   Seed = 203 1987 4663 8677 7349 6353 2803 5887 10513 4363 8227 14023 22717 17879 28501 22217 547 2503  ...  10241 4261 4037 3869 3743 7297 3157 3209

2^624 = 3^336 + 3365 * 4199796658507963543348192033850161584917117175526301353269734434329173562120419354780413672772415171801864233399236023196347164276301311627415122547557045765655556868486257128575741096209 / 203

::::::: 3*N+4351   Seed = 245 2543 2995 1667 1169 3929 8069 14279 11797 19871 15991 13081 21797 34871 27241 43037 66731 799 ... 49705 76733 117275 22261 35567 27763 10955 1163

2^672 = 3^366 + 4351 * 1103402814167822474881382071325480137263443016358074802724808612970327427257831590024986064792407378610873873845382384566581274222795067539453507073520344455356045309389679513583085955741034037736313165 / 245
```
